Product information

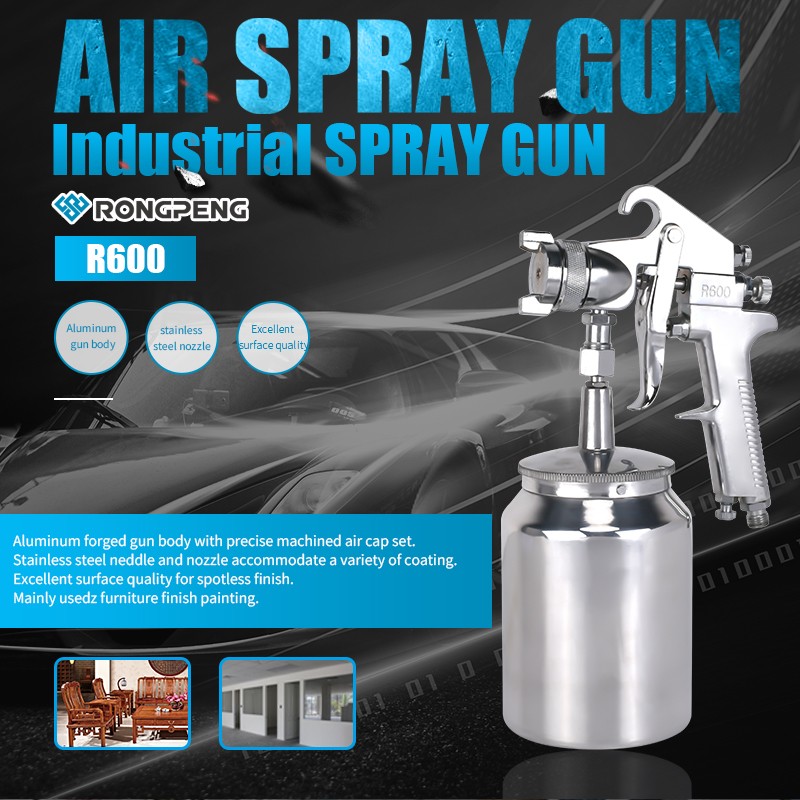

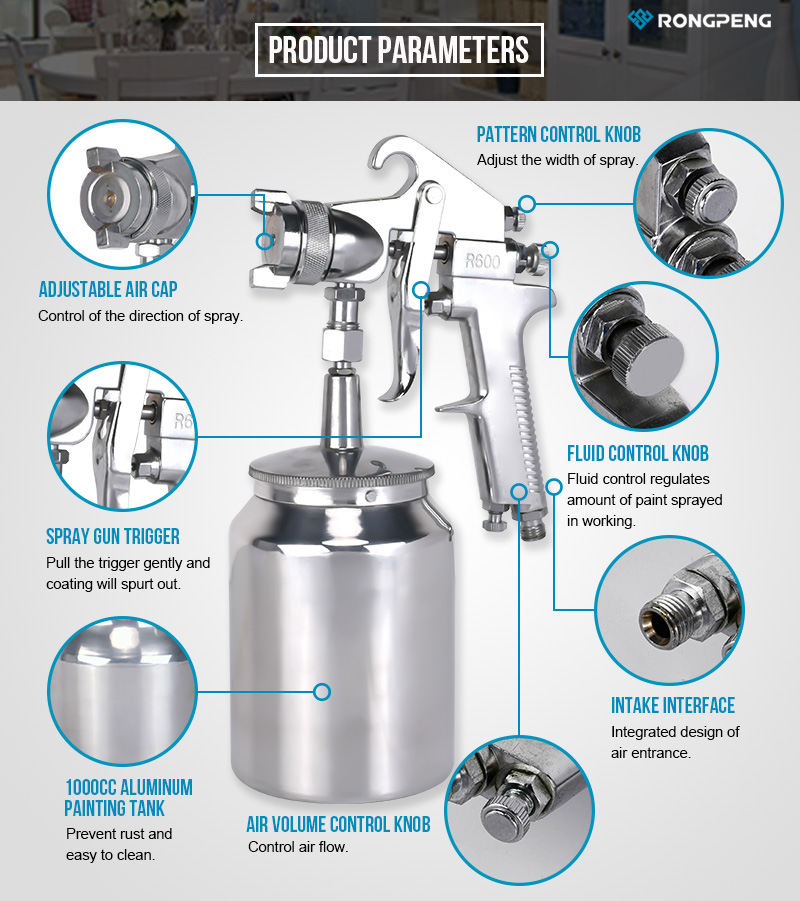

  • Aluminum forged gun body with precisely machined air cap set for a consistent spray pattern;

    Stainless steel needle and nozzle accommodate a wide variety of coatings, from paints to stains and lacquers;

    Provides an excellent, spotless surface finish for furniture and cabinetry;

    Ideal for professional-grade furniture painting and refinishing applications.


Versatile Nozzle Options: Comes with a standard 2.0mm nozzle, plus optional nozzles ranging from 1.3mm to 3.0mm to handle a variety of coating viscosities.


Consistent Spray Pattern: Delivers a stable, uniform spray pattern between 220-280mm wide at the optimal operating pressure of 3.0-4.0 bar.


Ample Paint Capacity: The 600cc paint cup allows for extended spraying periods without frequent refilling.


Efficient Air Consumption: Requires an air consumption of only 6.4-7.8 CFM, making it compatible with most standard air compressors.


Suction Feed Design: The suction feed system provides flexibility in positioning the unit relative to the paint source.


Durable Construction: The airless paint sprayer features an aluminum forged gun body and stainless steel fluid components for long-lasting performance.


The versatile nozzle selection, consistent spray pattern, and efficient air usage make this airless paint sprayer model R600 well-suited for professional furniture finishing, cabinetry, and other specialty coating applications.



Model

Type of Feed

Standard Nozzle

Optional Nozzle

Operating Pressure

Pattern Width

Air Consumption

Paint Capacity

R600

Suction

Φ2.0mm

Φ1.3Φ1.8Φ2.5Φ3.0mm

3.0-4.0bar

220-280mm

6.4x7.8cfm

600cc
